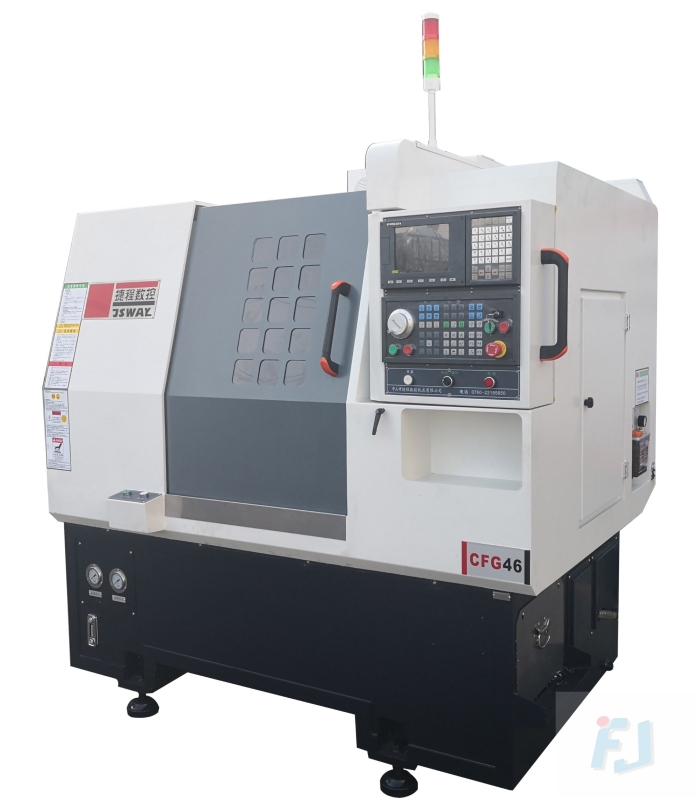

slant bed gang tool lathe CFG46

Item No.: CFG46
45° slant bed, easy for chips convey. A2-5 spindle, 5.5KW spindle motor. can install 7 tools
5000RPM. 30M/min
$19850.00
/ Pieces
  • spindle nose:
    A2-5(spindle hole 46mm)
    A2-6(spindle hole 52mm)
  • machine base:
    welded
    casted
Description Review
Description

CFG46/CFG56/CZG46/CZG56  2 axis gang type slant bed CNC lathe machine


F means the machine base is welded, Z means machine base is casted.



product-gang type lathe-JSWAY-img





Core product advantages



product-JSWAY-CFG46CFG56 2 axis gang type slant bed CNC lathe machine-img



product-JSWAY-img
High Precision Spindle
Sleeve-type spindle original from Taiwan, with 3 front&2 rear Japan ultra-high precision bearing to guarantee high rigidity and durable precision. Radial run out of spindle<3um Fastest spindle speed up to 5000rpm
product-JSWAY-gang type lathe-img
Carriage
Z axis with leadscrew of 40mm, powerful & high speed X/Z axis use double bearing and pre-pull structure so that the machining accuracy stay the same no matter the machine is in warm or cold state. Carriage can install 5-8 tools. Center height of the tools is 60mm
product-JSWAY-img
Safe guard for X/Z axis
Full proof, well protection of linear screw & guide way



product-CFG46CFG56 2 axis gang type slant bed CNC lathe machine-JSWAY-img-1
Efficiency Machining
X/Z axis fastest moving speed up to 36M/min(we set 30M/min at factory) Can assembly auto-bar feeder and chips conveyor to implement high speed and high efficiency automatic machining.
product-gang type lathe-JSWAY-img-1
Bed structure
45°slanting structure, smooth cuttings discharge. The base processed by gantry milling in one time, ensuring the precision of the machine.
product-JSWAY-CFG46CFG56 2 axis gang type slant bed CNC lathe machine-img-1
Spindle motor
Asynchronous Motor 5.5/7.5KW, accessory time 0 to 3500RPM only 1 second.





Machine parameter





PARAMETER















CAPACITY





CFG46

CFG56

Spindle bore

56MM

66 MM

Max. material diameter:

45MM

52 MM

Max swing over bed

350MM

350mm

Max.lenght of machining

100MM

100 mm

Max. travel of X-axis

715MM

715 mm

Max. travel of Z-axis

280MM

280 mm

X-axis/Z fast moving

30 M/MIN

30 m/min

Reposition accuracy ( x/z)

x≤0.007 mm   z≤0.015 mm

x≤0.007 mm   z≤0.015 mm







MOTOR

Servo motor

5.5KW

7.5KW

Spindle speed

4500R/MIN

3000 rpm/min

 X-axis servo motor

0.85KW

1.3KW

Z-axis servo motor

0.85KW

1.3KW

TOOLS

 Gang type tools

6-8

6-8





OTHERS

Total installed capacity

9 KW

13 KW

Size

2025X1385X1910

2025X1385X1910

N.W.

2700KG

2750KG



MACHINING RANGE



Diameter

Length

CFG46

CFG56

CFG46

CFG56

COLLET

4-45mm

4-52

5-100mm

5-80mm

CHUCK

4-160mm

4-200mm

5-100mm

5-80mm





Details of the figure





product-JSWAY-img-1
China cnc machine
product-JSWAY-gang type lathe-img-1
China machine
product-JSWAY-img-1
Clean cabinet



product-CFG46CFG56 2 axis gang type slant bed CNC lathe machine-JSWAY-img-2
Duochuan spindle motor
product-gang type lathe-JSWAY-img-2
English panel (1)
product-JSWAY-CFG46CFG56 2 axis gang type slant bed CNC lathe machine-img-2
Lathe machine cnc



product-JSWAY-img-2
Taiwan cylinder
product-JSWAY-gang type lathe-img-2
X axis with brake
product-JSWAY-img-2
Z axis cover



product-CFG46CFG56 2 axis gang type slant bed CNC lathe machine-JSWAY-img-3
Posa spindle
product-gang type lathe-JSWAY-img-3
Pressure gate





Packing and Shipping





This machine is widely use in LED parts, smart phone parts, precision industrial, hydraulic parts, E-cigarettes, optical parts, Valve accessory, medical devices and aviation industrial.



Contact us and get two collect chuck for free!

Write down your company information, and confirm the order, you will get two more collet chuck!
